The Vertical+ No Scratch is the most space-efficient vertical bicycle rack for high-density bicycle parking. The No Scratch bumper protects bikes from getting scratched while loading, unloading, and storing bikes. Endless configurability allows for a myriad of layout options to optimize available space for bicycle parking. The Vertical+ No Scratch Direct Wall Mount can be deployed alongside our Vertical+ No Scratch Floor and Wall Mount Systems to maximize density or it can be used as a stand-alone product.

The Vertical+ No Scratch Direct Wall Mount Bicycle Rack has the following features:

Optional No Scratch bumper protects bikes
Gear hanger (jacket/bag/helmet)
Square tube construction
U-lock compatible
Cushioned wheel hook
User-configurable bike spacing
Custom colors available

Typical applications use 13", 16", 17", or 18" spacing between bikes, but the product allows for any spacing to be used.

The Vertical + Direct Wall Mount rack is also available without the No Scratch bumper.

Materials

TGIC Powder Coat

This polyester-based finish is well suited for bike racks made from mild steel, and is available in a wide variety of colors. Powder coating serves as a protective barrier to the various environment elements that cause corrosion. To further increase corrosion resistance, Sportworks recommends an additional zinc plated undercoat be applied prior to the powder coating process. Zinc acts as a sacrificial anode to protect the base metal from corrosion should the powder coat become chipped.

Powder Coat Colors

Sportworks offers the following standard color palette for our bicycle racks. All standard colors are available in both a polyester and a thermoplastic powder coat and are typically available within our standard lead time. All polyester powder coat colors include an epoxy primer undercoat. Zinc plating is also available as an alternate undercoat option.

Custom Colors

Custom colors are available, and subject to minimum orders and lot charges. Custom colors matching RAL or Pantone, as well as anti-graffiti powder coat colors are available and may involve extended lead times and/or lot changes. Plascoat thermoplastic powder coat provides the following benefits: excellent corrosion, fade, chip, abrasion and graffiti resistance. For more information regarding custom colors contact our sales team.

Green Certifications

At Sportworks, we take environmental responsibility very seriously. Our bike racks are made with post-industrial recycled steel. We trace the location of origin and material/chemical composition of all the raw materials and sourced components we use. We also monitor VOC content in our finishing materials, and use recycled content in our packaging materials.

Installation of Sportworks bike racks may assist your project in qualifying for the following green building certification programs:

LEED®

Sportworks Vertical+ No Scratch racks can help you achieve one or more of the following points under the LEED Rating System:

· SS Credit 4.2—Alternative Transportation—Bicycle Storage and Changing Rooms To qualify for this credit, commercial, institutional or residential buildings must provide secure bicycle parking within 200 yards of a building entrance.

· MR Credit 4.1—Recycled Content—10% | MR Credit 4.2—Recycled Content—20% Sportworks mild steel bicycle racks average 30% total recycled content; 20% post-consumer recycled content; 10% pre-consumer (post-industrial) recycled content.

· MR Credit 5.1—Regional Materials—10% Extracted, Processed & Manufactured Regionally | MR Credit 5.2—Regional Materials—20% Extracted, Processed & Manufactured Regionally Our manufacturing facility is in the Pacific Northwest. If your project is within 500 miles of our factory in Woodinville, Washington, you may qualify for these credits.

Living Building Challenge

Vertical+ No Scratch racks are fully compliant with the Materials Red List of the Living Building Challenge, which means they don't contain harmful materials including formaldehyde, halogenated flame retardants, PVC, lead, mercury, CFC's, HCFC's, neoprene (chloroprene) and cadmium.

Our bike racks may also help fulfill the Car-Free Living, Appropriate Sourcing, Conservation & Reuse, and the Human Scale & Humane Places imperatives within Version 2.0 of the Living Building Challenge.

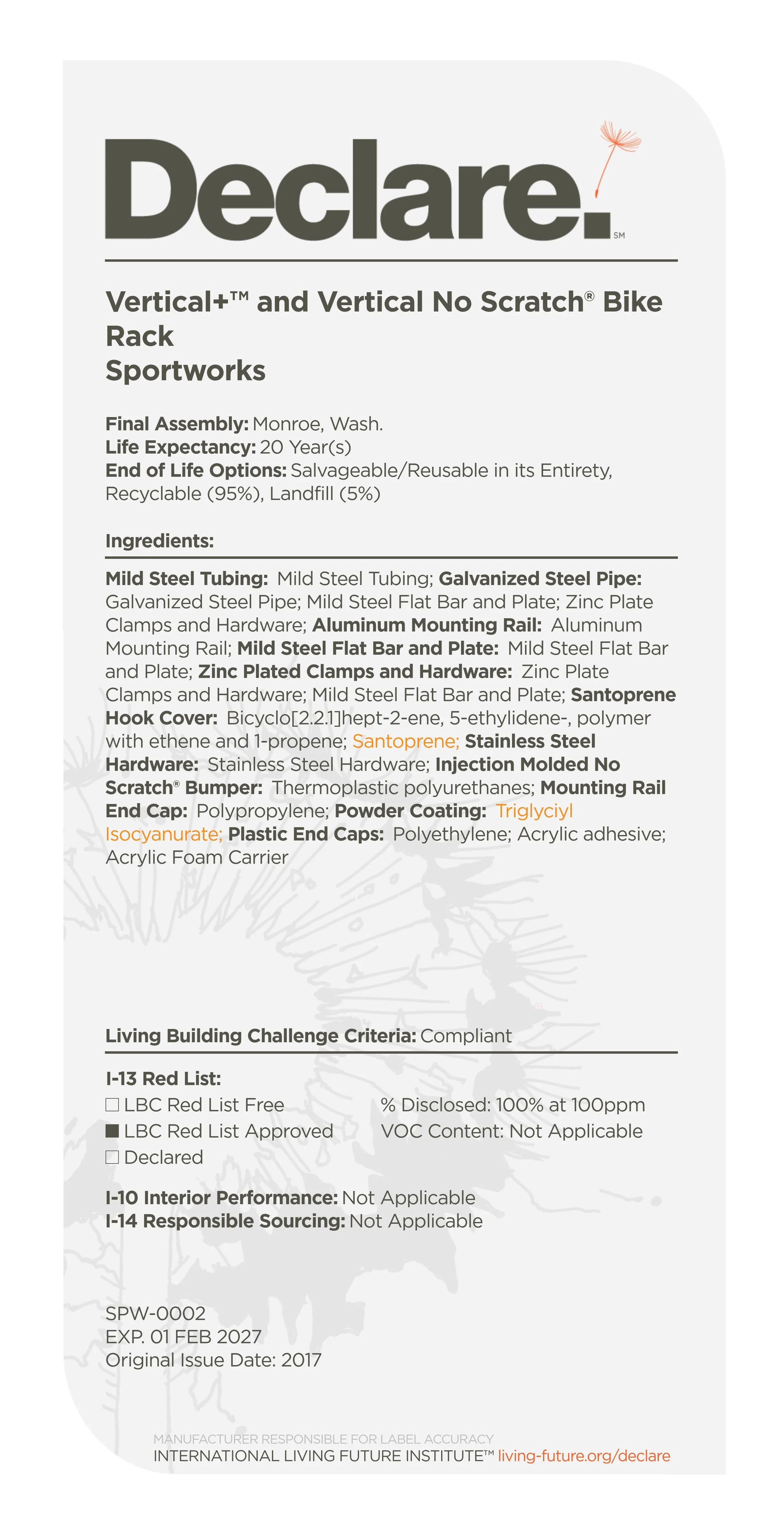

In 2014, Sportworks became Declare Certified as part of our commitment to sustainable practices. Our No Scratch™ Bike Parking Racks and Vertical+ Bike Parking Racks are all Declare Certified. These racks include the Tofino, Oahu, Westport, Vertical+ Floor System, Vertical+ Wall System, and Vertical+ Direct Wall Mount.

Green Globes™

Sportworks bike racks can help you qualify for the following Green Globes™ credits:

· E.2—Minimal Consumption of Resources Sportworks racks are made with recycled content and may be considered locally manufactured depending on the location of your project in relation to our factory in Woodinville, Washington.

· C.5—Energy Efficient Transportation Sportworks racks support the requirement of providing safe storage areas with fixed mountings for bicycles.
