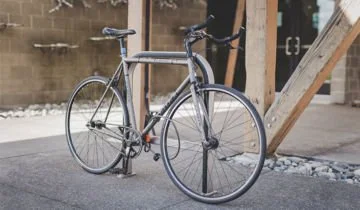

Cane Detectable (ADA Compliant) Tofino™ No Scratch® Bike Rack
NEED HELP? 888-661-0555 / M-F: 7AM - 4PM PACIFIC
Optimized BIM Files Built for Designers
Streamline your workflow with design files that ensure accuracy and compliance.
Comprehensive BIM Files for Ready for Use!
Designed for efficiency and precision, these parametric families adapt instantly to design changes, saving you time and ensuring seamless APBP compliance.
Includes DWG, DXF, Revit, & SketchUp formats.
Sportworks Cane Detectable Tofino No Scratch bike rack complies with the 2010 ADA Standards for Accessible Design, Chapter 3, Section 307.3, for post-mounted objects in circulation paths.
Integration of the Sportworks No Scratch® bumper protect bikes from damage.
Compared with our standard Tofino No Scratch bike rack, the Cane Detectable version adds a cross tube and is designed for use in circulation paths where cane detectability is required. The cross tube is constructed of the same high-security rectangular tubing used for all of our No Scratch racks, is welded into place, and is 10” above the ground.
Currently available only in stainless steel with bead blasted finish for surface mount installation. Compatible with Sportworks Mounting Rails.
Finishes
Sportworks bike parking products are available in a wide variety of finishes and materials. Please contact us for specific details regarding minimum lot size charges on finishes.
Bead Blast
Unlike powder coating and galvanizing, this finish removes material during the application process, and is ideal for stainless steel racks. Small glass particles (media) traveling at high velocities impact the metal removing the outer surface, and resulting in a mildly-textured or matted finish. Similar to galvanizing, there are no color options available for this type of finish. Sportworks stainless steel bike racks represent the highest level of corrosion protection available.
Materials
Stainless Steel
Stainless steel does not stain, corrode, or rust as easily as mild steel because it contains more chromium and nickel. A passive film of oxides prevents surface corrosion and blocks corrosion from spreading into the internal structure of the metal. Stainless steel can still corrode and discolor in certain environments, however the strength and appearance can withstand exposure in most outdoor locations.
Mounting Options
Complete installation instructions for all Sportworks bike parking products are available as a PDF on this page or by visiting the downloads section of the website.
Surface Mount
Surface mount uses permanent or removable anchors to secure the bicycle rack mounting flange to concrete.
Mounting In Ground Mount
Embedding the bicycle rack into concrete represents the most secure mount for a bicycle rack. An additional 10” of length is included on the bicycle rack post(s) for casting in concrete.
Rail Mount
Rail mount secures a series of bicycle racks to metal rails. Rail mounts reduce the installation time when multiple bicycle racks are needed in the same location. Additionally, the user can leave the rails unsecured and manipulate the bicycle racks when necessary to support sidewalk clearing or cleaning.
Fastener Options
Concrete Wedge Anchor
Concrete Wedge Anchors, 3/8” Diameter x 3.75” Length, Stainless Steel, with 3/8-16 Hex Nut
Asphalt Anchor
Asphalt Anchor, 12” Length, Epoxy in Ground, Includes Epoxy, Hex Head Bolt 3/8”-16 x 2.5” Length and Washer
Tamper Resistant Anchors
Tamper resistant anchors are recommended for surface mounted racks. When the substrate is concrete, we recommend stainless steel wedge anchors with stainless steel breakaway nuts, also known as shear nuts. These nuts make it much more difficult for someone to tamper with or remove an installed bicycle rack.
Breakaway Nut Pre Installation
The breakaway nut consists of a hex nut portion at the top and a smooth conical sleeve located just below. Install the wedge anchor using standard tools and then tighten the breakaway nut.
Breakaway Nut Installed
The hex portion of the nut will shear off when the design shear torque is exceeded. Once the hex nut shears off, only the smooth conical sleeve will remain. The tamper resistant anchor is now installed. The cone is shaped so standard tools will not be able to grip and remove the nut.
Green Certifications
At Sportworks, we take environmental responsibility very seriously. Our bike racks are made with post-industrial recycled steel. We trace the location of origin and material/chemical composition of all the raw materials and sourced components we use. We also monitor VOC content in our finishing materials, and use recycled content in our packaging materials.
Installation of Sportworks bike racks may assist your project in qualifying for the following green building certification programs:
LEED®
SS Credit 4.2-Alternative Transportation-Bicycle Storage and Changing Rooms
To qualify for this credit, commercial, institutional or residential buildings must provide secure bicycle parking within 200 yards of a building entrance.MR Credit 4.1—Recycled Content—10% | MR Credit 4.2—Recycled Content—20%
Sportworks stainless steel bicycle racks average 87% total recycled content; 72% post-consumer recycled content; 15% pre-consumer (post-industrial) recycled content.MR Credit 5.1—Regional Materials—10% Extracted, Processed & Manufactured Regionally | MR Credit 5.2—Regional Materials—20% Extracted, Processed & Manufactured Regionally
Our manufacturing facility is in Woodinville, Washington. If your project is within 500 miles of our factory, you may qualify for these credits.
Living Building Challenge
Tofino™ No Scratch® Bike Rack is fully compliant with the Materials Red List of the Living Building Challenge, which means they don't contain harmful materials including formaldehyde, halogenated flame retardants, PVC, lead, mercury, CFC's, HCFC's, neoprene (chloroprene) and cadmium.
Our bike racks may also help fulfill the Car-Free Living, Appropriate Sourcing, Conservation & Reuse, and the Human Scale & Humane Places imperatives within Version 2.0 of the Living Building Challenge.
Green Globes™
Sportworks bike racks can help you qualify for the following Green Globes™ credits:
E.2—Minimal Consumption of Resources
Sportworks racks are made with recycled content and may be considered locally manufactured depending on the location of your project in relation to our factory in Woodinville, Washington.C.5—Energy Efficient Transportation
Sportworks racks support the requirement of providing safe storage areas with fixed mountings for bicycles.
